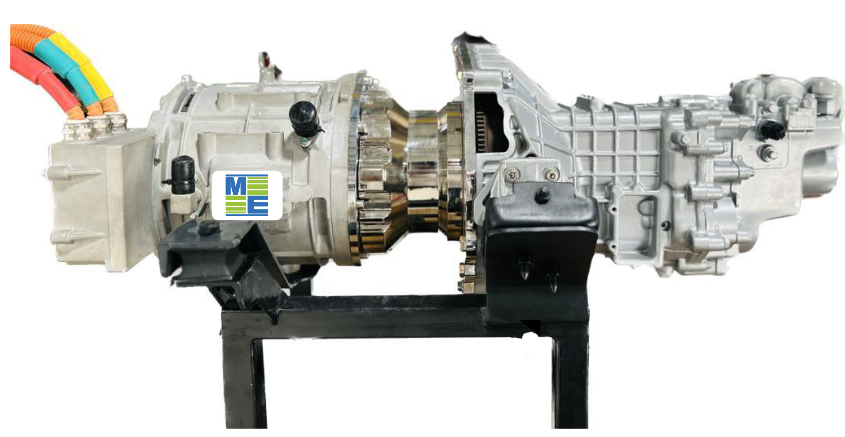

32KW PMSM Motor With Manual Transmission

PMSM Technical Specifications

PMSM Rated Power: 32KW
PMSM Rated Voltage: 150VAC
PMSM Rated Speed: 4500RPM
Operating Temperature:-40° to 180
Insulation Class:F
Drive Type:Mid Drive

Controller Protection

Over Current Protection
Over Voltage & Under Voltage Protection
Over Temperature Protection
Short Circuit Protection
Phase Loss Protection
Stall Protection
Reverse Polarity Protection
Underload Protection
Soft Start and Soft Stop.

Gear Transmission Features

Variable Gear Ratios
Manual Forward and Reverse Gears
Synchronization
Clutch Plate and Fly Wheel
Inbuilt Differential
Manual Modes
Liquid Cooling System
Durability Enhancements

32KW PMSM Motor Specification

Sr. No

Specifications

Values

1

Voltage

150Vrms

2

Rated Power

32Kw

3

Peak Poweer

52Kw

4

Rated Torque

110Nm

5

Peak Torque

300Nm

6

Rated Current

91A

7

Peak Current

148A

8

Speed

4500rpm

9

Motor Type

PMSM

10

Drive Type

Mid Drive

11

Pole Count

8

12

Insulation Class

F

13

Cooling

Liquid Cooling

14

Operating Temperature

-40° to 150

Motor Controller Specification

Sr. No

Specifications

Values

1

Voltage

250-450V

2

Rated Power

25Kw

3

Peak Poweer

80Kw

4

Rated Current

150A

5

Peak Current

440A

6

Phse Angle

120°

7

Weight

8kg

Gear Transmission

Sr. No

Clutch Type

Dry Single Disc

Remarks

1

Gear Ratio - 1st Gear

3.545

<16 KMPH

2

Gear Ratio - 2nd Gear

1.904

24 KMPH

3

Gear Ratio - 3rd Gear

1.233

56 KMPH

4

Gear Ratio - 4th Gear

0.885

88 KMPH

5

Gear Ratio - 5th Gear

0.69

>104 KMPH

6

Reverse Gear Ratio

3.25

-

7

Final Drive Ratio

3.944

-

8

Cooling

Oil Cooling

-

9

Oil Quantity

3.1 Liters

-

10

Max Torque

113Nm/4400rpm

-

11

Power

76.43bhp/6000rpm

-

12

Weight

60kg

-
