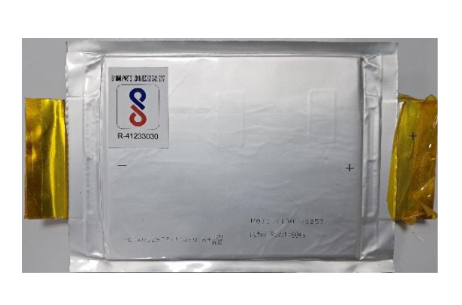

Pouch Cells

  • Home
  • Products
  • Pouch Cells

Capacity 25Ah

  • Cell Chemistry : LTO

  • Weight : 0.89kg

  • Energy Density : ≥67.4 Wh/kg

  • Cycle Life : ≥ 16000 Times

  • C Ratings Continuous : Charge – 8C; Discharge – 8C

Pouch Cells Specifications

Specifications
25Ah
Chemistry Type
LTO
Nominal Capacity
25AH
Nominal Voltage
2.4V
Operating Voltage Range
2-2.7V
Nominal Discharge Current
25A (1C)
Max Continuous Discharge Current
≤200A (8C)
Max Pulse Discharge Current
≤300A (12C) @30s
Nominal Charge Current
25A (1C)
Max Continuous Charge Current
≤200A (8C)
Max Pulse Charge Current
≤375A (15C) @10s
Working Temperature
Charge: 0°C ~ 55°C
Discharge: -20°C ~55°C
Storage Temperature
-40°C ~ 6°0C
DC Internal Resistance
≤0.29 mΩ
Dimensions
L: 281mm
W: 178mm
T: 13mm
Weight
0.89kg
Energy Density
≥67.4Wh/kg
Life Cycles
≥16000 Cycle
