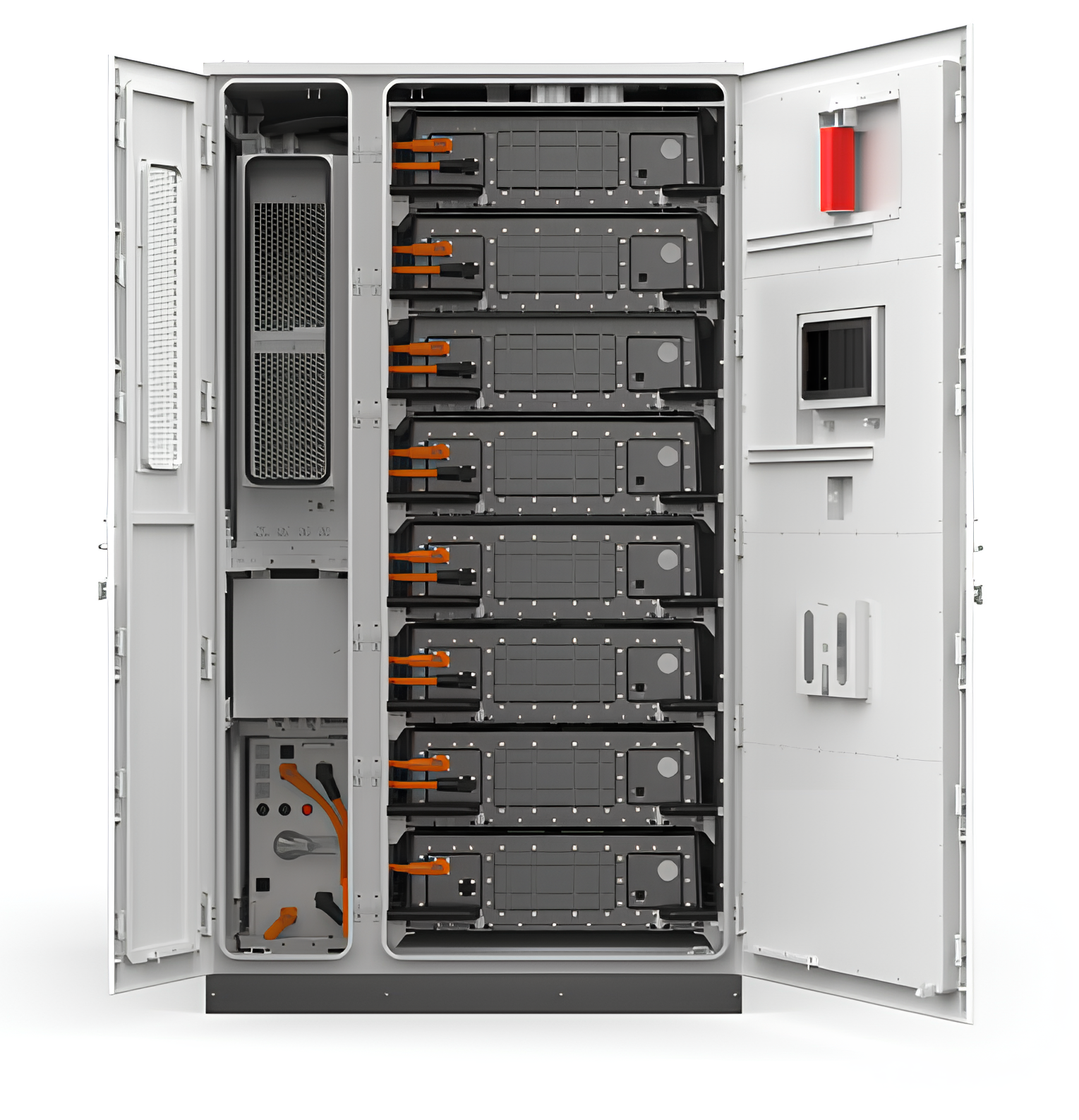

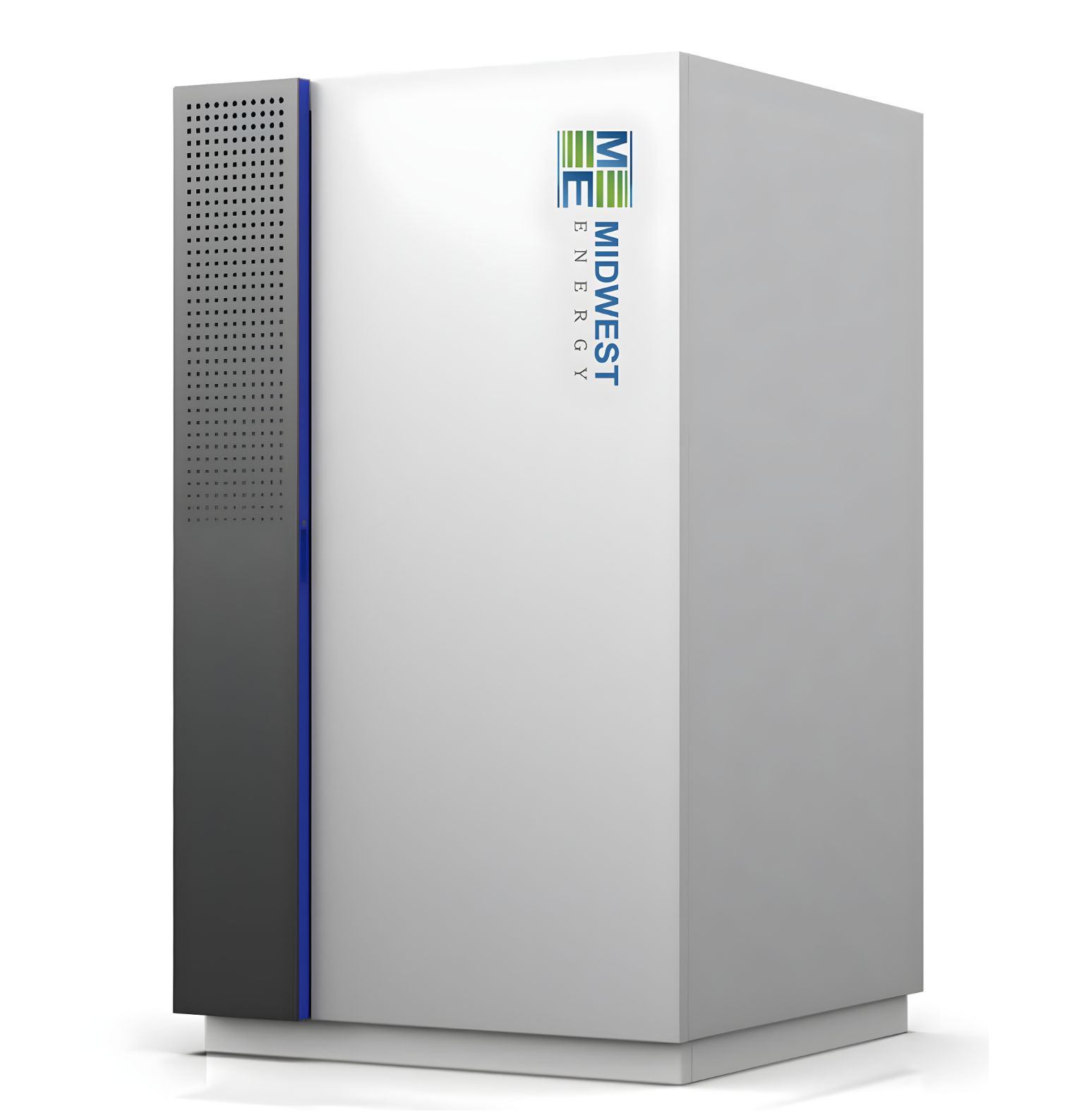

Battery Energy Storage Systems
BMS Technical Specifications
-
BMS Supporting Cell Types: LFP, LTO, LIC, & NMC.
-
Configuration of Cell Outputs: 8S to 36S
-
Battery Pack Voltage ranges up to: 19.2V to 115.2V.
-
Measurement of the Battery Cell Voltage: +/- 2.2mV.
-
Temperature Measurement up to 18 Sensors / Board.
-
Cell Balancing Current at 471mA per cell.
-
Power Supply from the BP (Battery Pack) No Aux Battery Required.
-
Low Power Consumption in the Sleep Mode <6 µA
Advance Functions of Battery Pack
-
State of Charge (SOC) Based OCV.
-
Internal Daisy Chain ISO-SPI Communication.
-
Battery Event Recording.
-
LED Indication During Balancing.
-
Battery Storage Management.
-
Wake-up Load Detection & Charge Detection.
-
Ignition Wake Up & CAN Wake up.
-
Tolerant to Hot Plug.
-
Supports CAN 2.0B.
Battery Pack Protection
-
Over & Under Voltage.
-
Over & Under Temperature.
-
Over Current.
-
Over Charge.
-
Pre-Charge Over Current Protection.
-
Complete Isolation at Board Level.
Battery Pack Safety Features
-
Short Circuit Protection.
-
Open Wire Detection.
-
Sensor Failure Detection.
-
Plausibility Checks for Critical Parameters.
-
Galvanic Isolation.
-
HVIL
