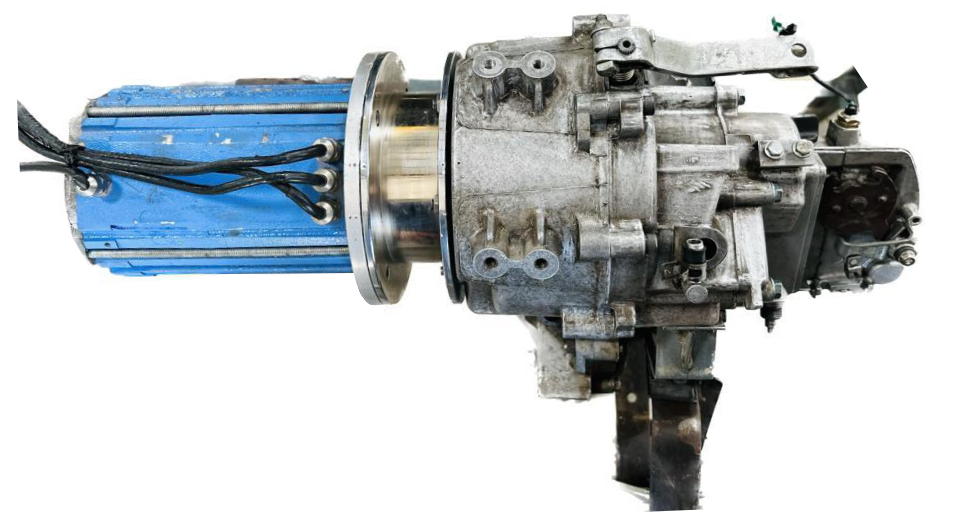

4.5KW BLDC Motor With Manual Transmission

PMSM Technical Specifications

PMSM Rated Power: 4.5KW
PMSM Rated Voltage: 30VAC
PMSM Rated Speed: 3750RPM
Operating Temperature:-20° to 155°C
Insulation Class:F
Drive Type:Mid Drive

4.5KW BLDC Motor With Manual Transmission

Controller Protection

Over Current Protection
Over Voltage & Under Voltage Protection
Over Temperature Protection
Short Circuit Protection
Phase Loss Protection
Stall Protection
Reverse Polarity Protection
Underload Protection
Soft Start and Soft Stop.

Gear Transmission Features

Variable Gear Ratios
Manual Forward and Reverse Gears
Synchronization
Clutch Plate and Fly Wheel
Inbuilt Differential
Manual Modes
Liquid Cooling System
Durability Enhancements

4.5KW BDLC Motor Specification

Sr. No

Specifications

Values

1

Voltage

30Vrms

2

Rated Power

4.5Kw

3

Peak Poweer

6Kw

4

Rated Torque

11Nm

5

Peak Torque

30Nm

6

Rated Current

90A

7

Peak Current

120A

8

Speed

5000rpm

9

Motor Type

BLDC

10

Drive Type

Mid Drive

11

Pole Count

8

12

Insulation Class

F

13

Cooling

Liquid Cooling

14

Operating Temperature

-20° to 155°

Motor Controller Specification

Sr. No

Specifications

Values

1

Voltage

24-72 Vdc

2

Rated Power

3Kw

3

Peak Poweer

10Kw

4

Rated Current

80A

5

Peak Current

300A

6

Phse Angle

120°

7

Weight

3kg

Gear Transmission

Sr. No

Clutch Type

Dry Single Disc

Remarks

1

Gear Ratio - 1st Gear

1.195

10 KMPH

2

Gear Ratio - 2nd Gear

1.571

25 KMPH

3

Gear Ratio - 3rd Gear

2.103

35 KMPH

4

Gear Ratio - 4th Gear

3.090

55 KMPH

5

Gear Ratio - 5th Gear

5.350

80 KMPH

6

Reverse Gear Ratio

2.220

-

7

Final Drive Ratio

3.440

-

8

Cooling

Oil Cooling

-

9

Oil Quantity

0.32 Liters

-

10

Max Torque

24Nm

-

11

Power

8 BHP @4000rpm

-

12

Weight

25kg

-
