  • Prismatic LFP Cells

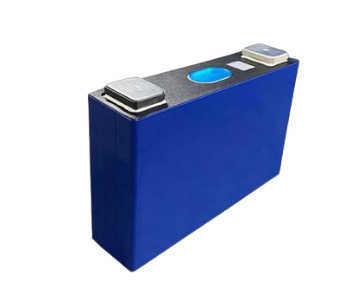

Capacity 50Ah

  • Weight : 1.18 ±0.05kg

  • Energy Density : 140Wh/kg.

  • Cycle Life : 3000 Times

  • C Ratings : Charge – 1C; Discharge – 1C

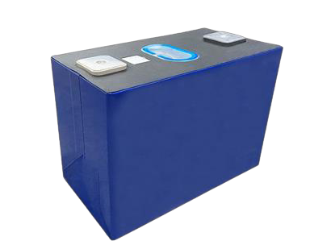

Capacity 135Ah

  • Weight : 2.63 ±0.05kg

  • Energy Density : 164Wh/kg

  • Cycle Life : 3000 Times

  • C Ratings : Charge – 1C; Discharge – 1C

Capacity 205Ah

  • Weight : 3.90 ±0.12kg

  • Energy Density : 168Wh/kg

  • Cycle Life : 4000 Times

  • C Ratings : Charge – 1C; Discharge – 1C

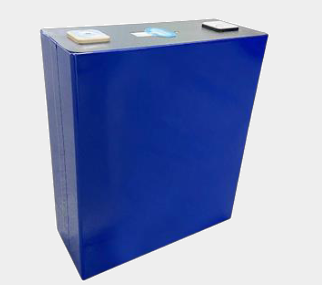

Capacity 280Ah

  • Weight : 5.27 ±0.16kg

  • Energy Density : 170Wh/kg

  • Cycle Life : 4000 Times

  • C Ratings : Charge – 1C; Discharge – 1C

Prismatic LFP Cells Specifications

Specifications
50Ah
135Ah
205Ah
280Ah
Chemistry Type
LFP
LFP
LFP
LFP
Nominal Capacity
50Ah
135Ah
205Ah
280Ah
Nominal Voltage
3.2V
3.2V
3.2V
3.2V
Operating Voltage Range
2.5-3.65V
2.5-3.65V
2.5-3.65V
2.5-3.65V
Nominal Discharge Current
25A (0.5C)
67.5A (0.5C)
102.5A (0.5C)
140A (0.5C)
Max Continuous Discharge Current
≤50A (1C)
≤135A (1C)
205A (1C)
280A (1C)
Max Pulse Discharge Current
≤150A (3C) @30s
≤405A (3C) @60s
≤410A (2C) @60s
≤560A (2C) @60s
Nominal Charge Current
25A (0.5C)
67.5A (0.5C)
102.5A (0.5C)
140A (0.5C)
Max Continuous Charge Current
≤50A (1C)
≤216A (1.6C)
≤205A (1C)
≤280A (1C)
Max Pulse Charge Current
≤100A (2C) @10s
≤270A (2C) @30s
≤410A (2C) @60s
≤560A (2C) @60s
Working Temperature
Charge: Charge: 0°C ~55°C
Discharge: -20°C ~55°C
Charge: -0°C ~ 55°C
Discharge: -20°C ~ 55°C
Charge: 0°C ~ 55°C
Discharge: -30°C ~ 55°C
Charge: 0°C ~ 55°C
Discharge: -30°C ~ 55°C
Storage Temperature
-30°C ~ 55°0C
-20°C ~ 55°C
-30°C ~ 60°C
-30°C ~ 60°C
DC Internal Resistance
≤2.0mΩ
≤0.5mΩ
≤0.42mΩ
≤0.30mΩ
Dimensions
L: 148.83mm
W: 39.61mm
H: 101.75mm
L: 148mm
W: 79mm
T: 102mm
L: 174.7mm
W: 53.7mm
T: 207.2mm
L: 174.7mm
W: 71.7mm
T: 206.8mm
Weight
1.18kg
2.63kg
3.9kg
5.4kg
Energy Density
≥140Wh/kg
≥165Wh/kg
≥168Wh/kg
≥168Wh/kg
Life Cycles
≥3000 Cycles (@1C/1C, 25°C)
≥3000 Cycles (@1C/1C, 25°C)
≥4000
≥4000
